2D QR Bar Code Scanner Cordless CMOS Image Barcode Reader For Mobile Payment Computer Screen 2D Scanner With Barcode Stand
Product Description:
The K-625RB a 2d wireless barcode scanner, it communicates by 433Mhz ISM radio frequency with about 500 meters outdoor communication distance (without any obstacle).Readable most 1D barcode and 2D barcode such as QR code, PDF417 code, Data Matrix, Aztec Code and so on.This barcode reader fits multiple enterprise workflows and offer a variety of configurations. Whether they are positioned at the point of sale, stationed above a warehouse conveyor belt or mounted on a wall for quick accessibility, our intuitive barcode readers give enterprises the freedom to deploy them to fit their business-critical needs.
Product Features:
• Excellent Decording Ability
• 2 kinds of wireless solution :2.4Ghz and Bluetooth
• Instant upload mode & Storage mode
• Long Working Time & Fast Scanning Speed
• 2 year warranty from the date of purchase
Product Specification:
| Performance Parameters |
| Light Sources | 617nm LED Aimer,White LED |
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code. |
| Resolution | 640*480 |
| Scan Method | Manual/Contnuous/Automatic inductive scanning |
| Scan Angle | Yaw 55°,Rotation 360°,Pitch 55° |
| Precision | ≥5mil |
| Contrast | 20% |
| Depth of scan field | EAN13 50-200mm(13mil); QR 25-240mm(20mil); PDF417 30-130mm(6.67mil) |
| Error Rate | Less than 1/5million |
| Interface | USB-HID |
| Wireless Communication | Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 |
| Transmission Distance | 30-50M (Open yard) |
| Storage Mode | Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. |
| Pairing Mode | One to One: One Scanning Gun Pairs One Receiver, One scanner paired with a Bluetooth mobile device. |
| Physical Parameters |
| Dimensions | 79.7mm*69mm*155mm |
| Weight | 223.9g |
| Material | ABS+PC |
| Cable Length | 1.2M |
| Environmental Parameters |
| Operating Temperature | -20℃ ~50℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95% RH(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete |
| lectrical Parameters |
| Voltage | DC5V±5% |
| Operating Current | when not scanning code ≥26mA; when scanning code ≥280mA |
| Standby Current | 0mA(Standby is to cut off battery power) |
| Charging Mode | Contact the charging |
| Battery Working Time | 6h |
| Charging Time | 3.5h |
| Lithium battery | 1400mA |
| Charging Model | Square USB charging cable, plug straight charge |

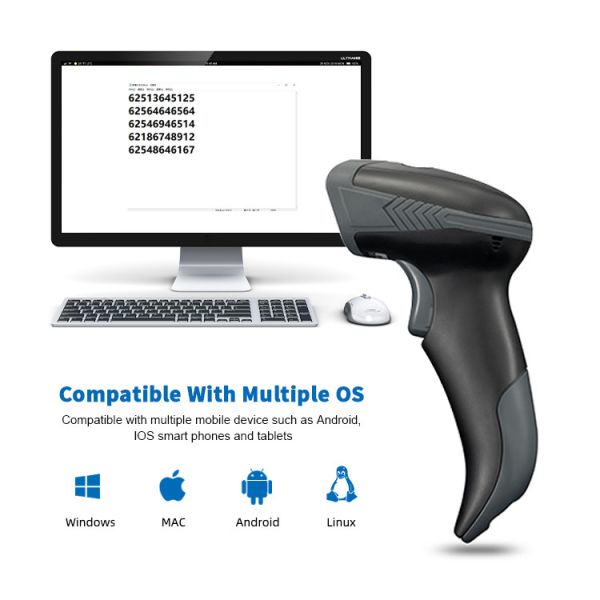

Product Pictures:
Product Application:
• Small Store Point of Sale
• Inventory Tracking
• Small Item Pick and Pack
• Supermarket
• Library
FAQ:
1. Do barcode scanners need wifi?
No. Scanning a QR Code does not require the Internet. You can scan QR Codes without the Internet or network in general.
2. What are the advantages of 2D barcodes?
More specifically, the sensor in the barcode scanner detects the reflected light from the illumination system (the red light) and generates an analog signal that is sent to the decoder. The decoder interprets that signal, validates the barcode using the check digit, and converts it into text.
